Besen Type 2 Charging Station - Charging Station with Socket
Shipped Next Business Day
Load capacity up to 22 kW- Change charging and load capacity with app
- With LCD for Real Time Monitoring of Charging Session
- Waterproof and suitable for outdoor use thanks to IP66
- Temperature monitoring during loading session for extra safe loading
Self collection possible
Self collection possible
You can pick up your order on working days (in time slots) at our warehouse in Ridderkerk. Your order can be picked up between 09:00 - 11:00 or between 16:00 - 20:00. If you report to Schillingstraat 7, 2988 CT in Ridderkerk, a warehouse employee will hand over your package.
Delivery
Delivery
If you live in the Netherlands and order before 23:00 on a weekday, you will receive the product the next day. Orders after 23:00 or on weekends will be shipped on the next business day. For residents of Belgium & Germany, delivery takes 1 to 2 business days. For both the Netherlands, Belgium & Germany, shipping costs are free for orders over €40.
Returns
Returns
You can return your product within 30 days of receipt if you change your mind. Please make sure the product is complete and in its original packaging. Damaged or used items will not be accepted. Go to our returns page to request a return or exchange.

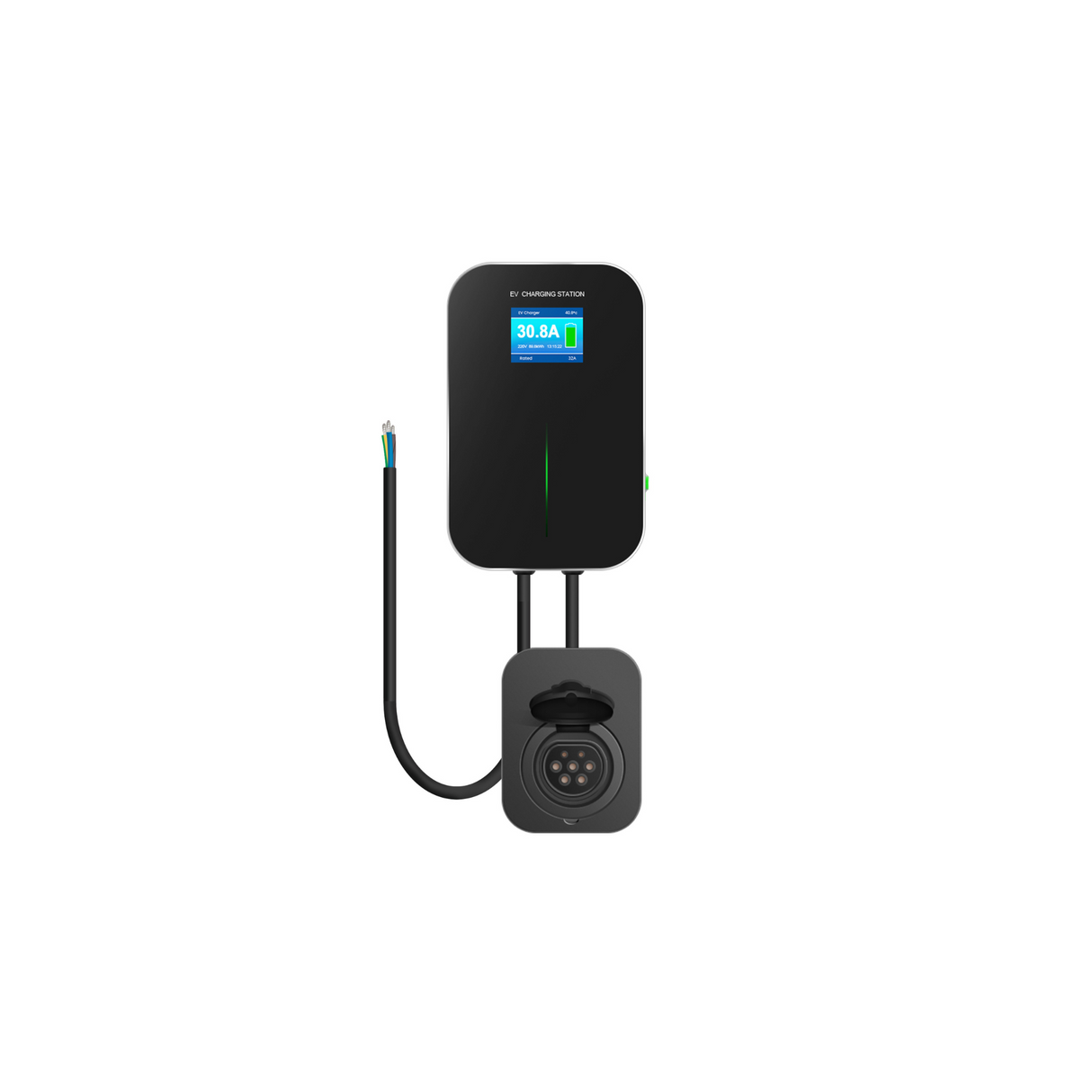

Besen Type 2 Charging Station - Charging Station with Socket
Plus points
App variant can schedule charging sessions, view and export charging data
With LCD screen to view loading data in real time
Built-in earth leakage, overvoltage, undervoltage and overheat protection
Charging station with best water protection thanks to IP66 certification

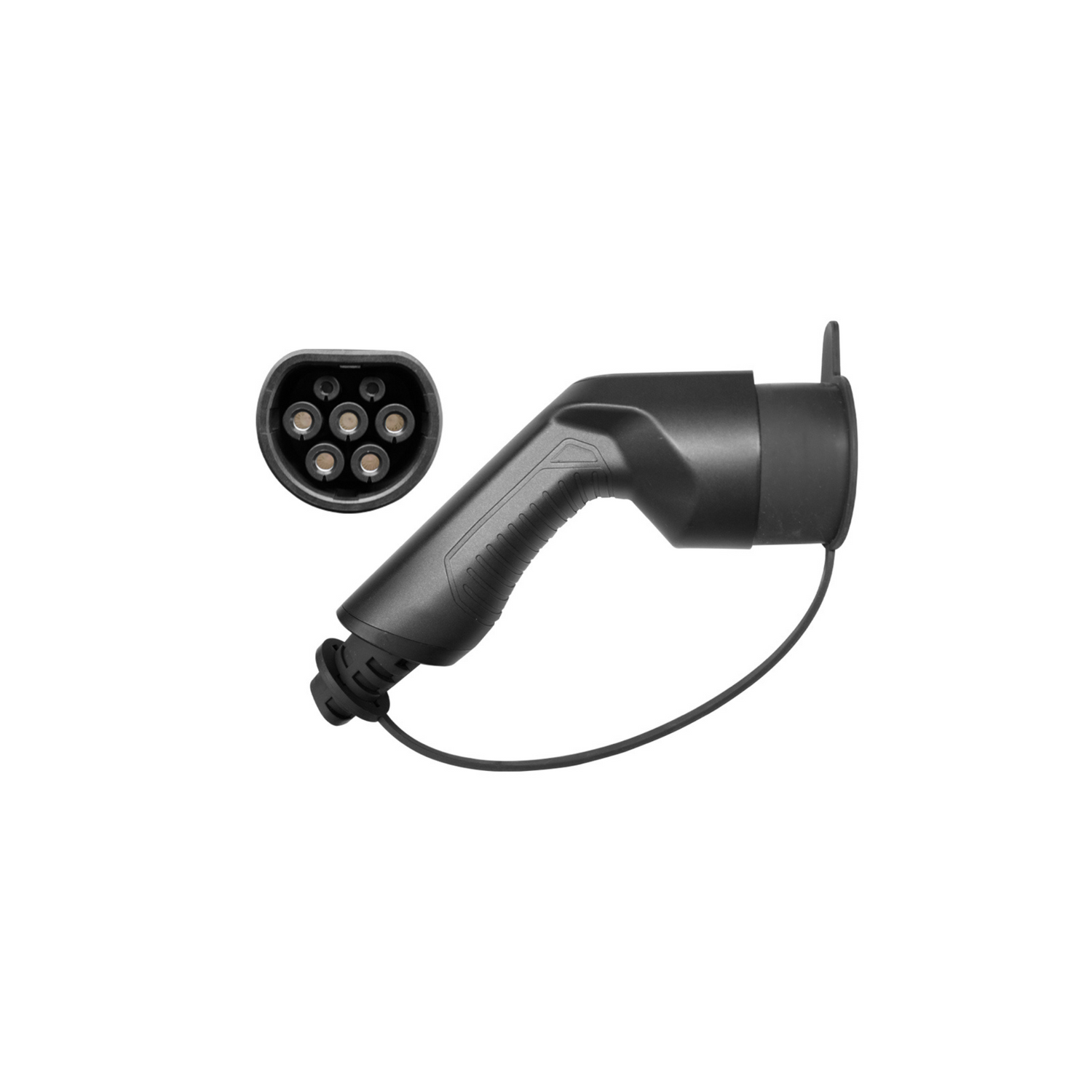

With socket that fit both type 1 and type 2 loading cables
Cons
- Does not work in electricity networks without neutral
The app variant requires a strong WiFi signal for WiFi connection
- Brightness of LCD screen cannot be dimmed
Description
Description

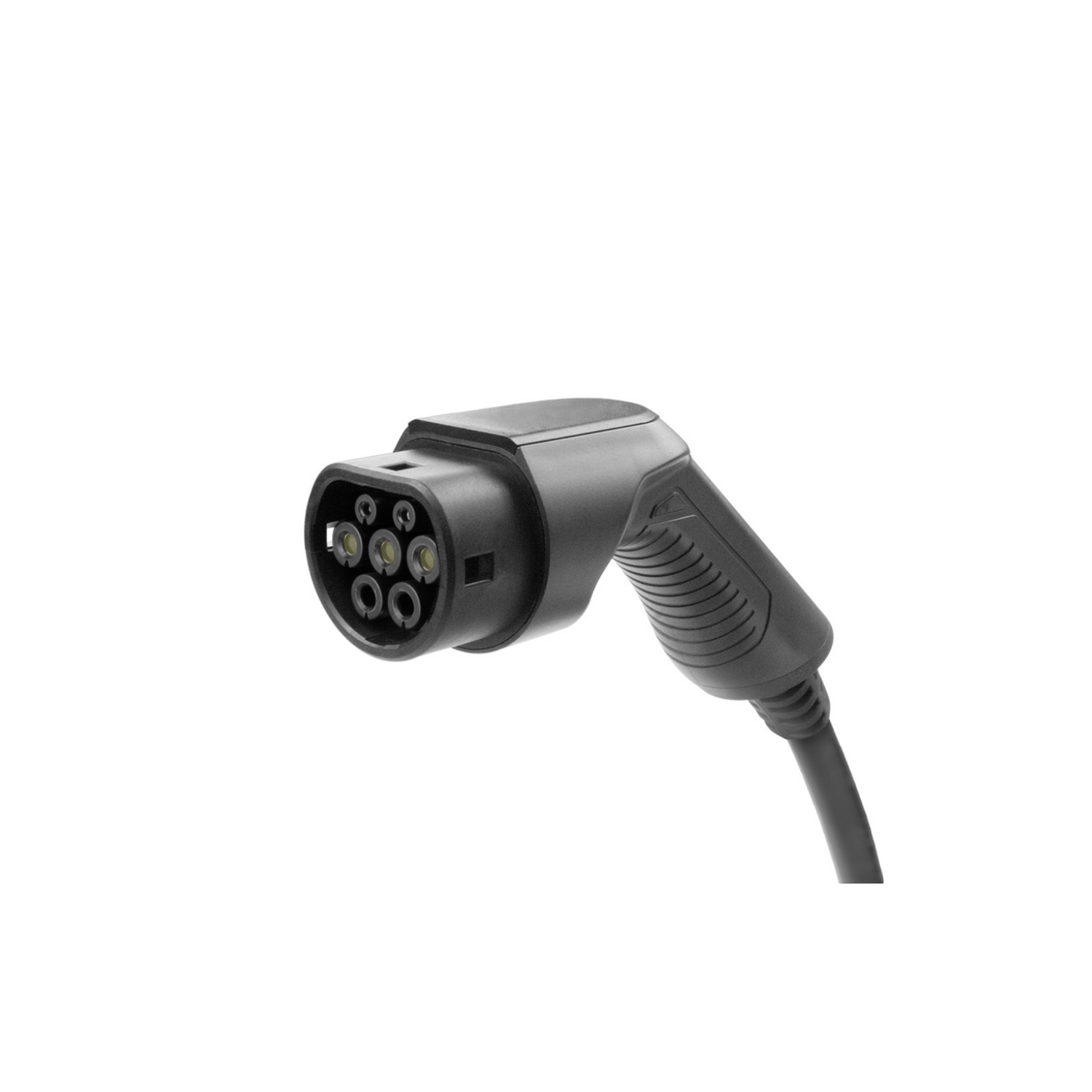

Socket for all charging cables
In contrast to the Besen charging station with fixed type 2 charging cable, This variant has a socket that fits every charging cable. This makes it possible to charge both type 1 and type 2 cars, provided you have the correct charging cable at hand. So do you have two electric cars with different types? Then a charging station with socket is the best choice for you.
NB: The Besen charging station is unfortunately not suitable for the Renault Zoe.
Load capacity up to 22 kW
The Besen loading station with socket is available in the 11 kW to 22 kW, just like the app variant with socket. Although it is a 3-phase charging station, you can also connect and use the Besen Socket variant to your 1-phase connection.
NB: To use 3 phase 22kW, you must meet these two conditions:
1. The meter cupboard must be adjusted to your network operator.
2. The onboard charger of the EV must be able to receive the desired load capacity.
Higher IP protection than other charging stations

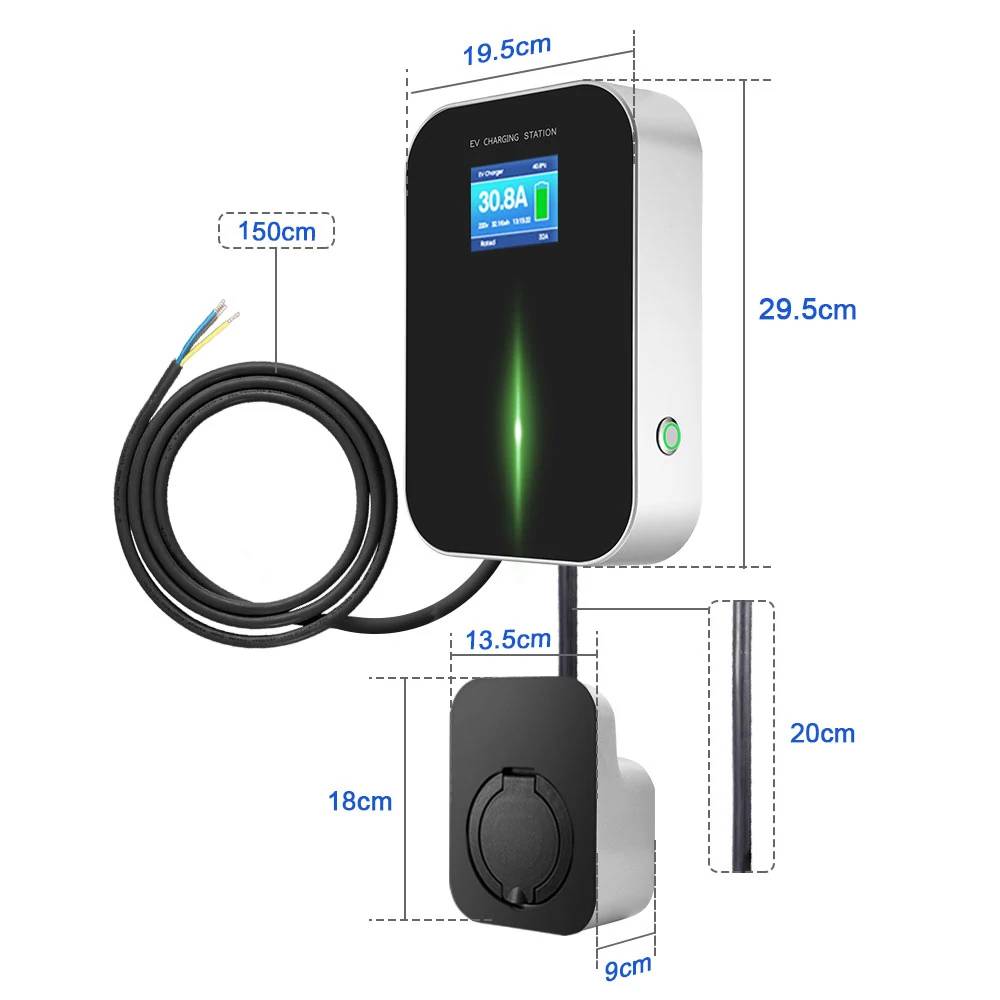

Most charging stations have an IP certification of IP54. This is enough to be used outside, but Besen likes to go that step further. They have made the housing even water poet and received an IP66 certification. They made this possible by a short power cable in advance (~ 50 to 150 cm) To connect to the charging station and then make the housing around it watertight.
To connect to the meter cupboard, this short power cable must be extended via a welding box with another power cable, the end of which is attached to the meter cupboard. However, this is not a problem for the installers of our partner Laadunie!

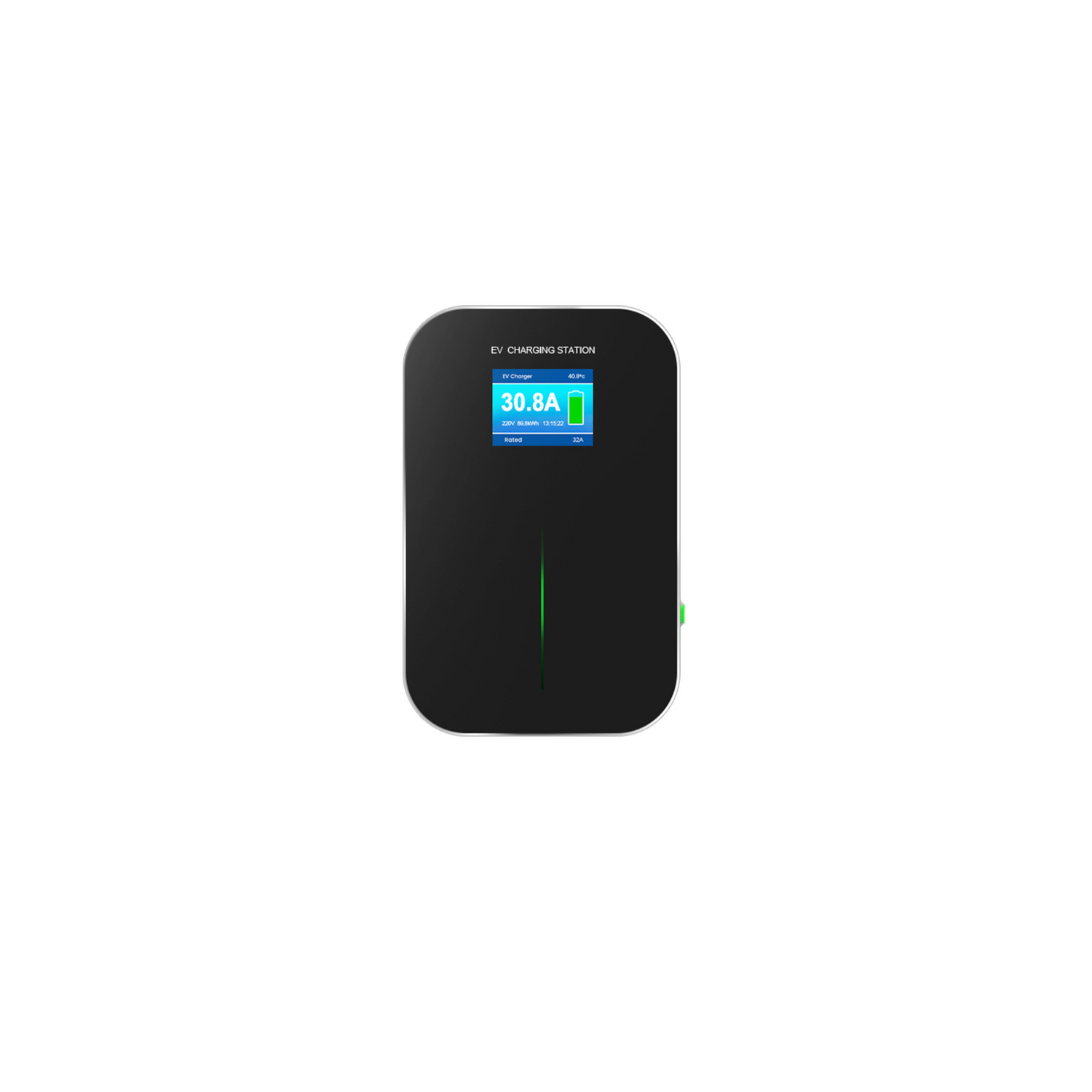

Real Time Monitoring on LCD screen
Via the handy LCD screen you can see the real-time data of your charging session at a glance, such as consumption and current load capacity.
Extra security
The Besen charging station is secured in different ways. For example, the charging station has integrated protection for overheating, DC leak protection, overload and underload. This protects your meter cupboard, charging station and electric car.
Basic variant
The load capacity of the basic variant depends on the maximum load capacity that your electric car can handle. The load capacity cannot be adjusted. This means that you are always sure that your electric car will be charged with optimum loading speed.
App variant

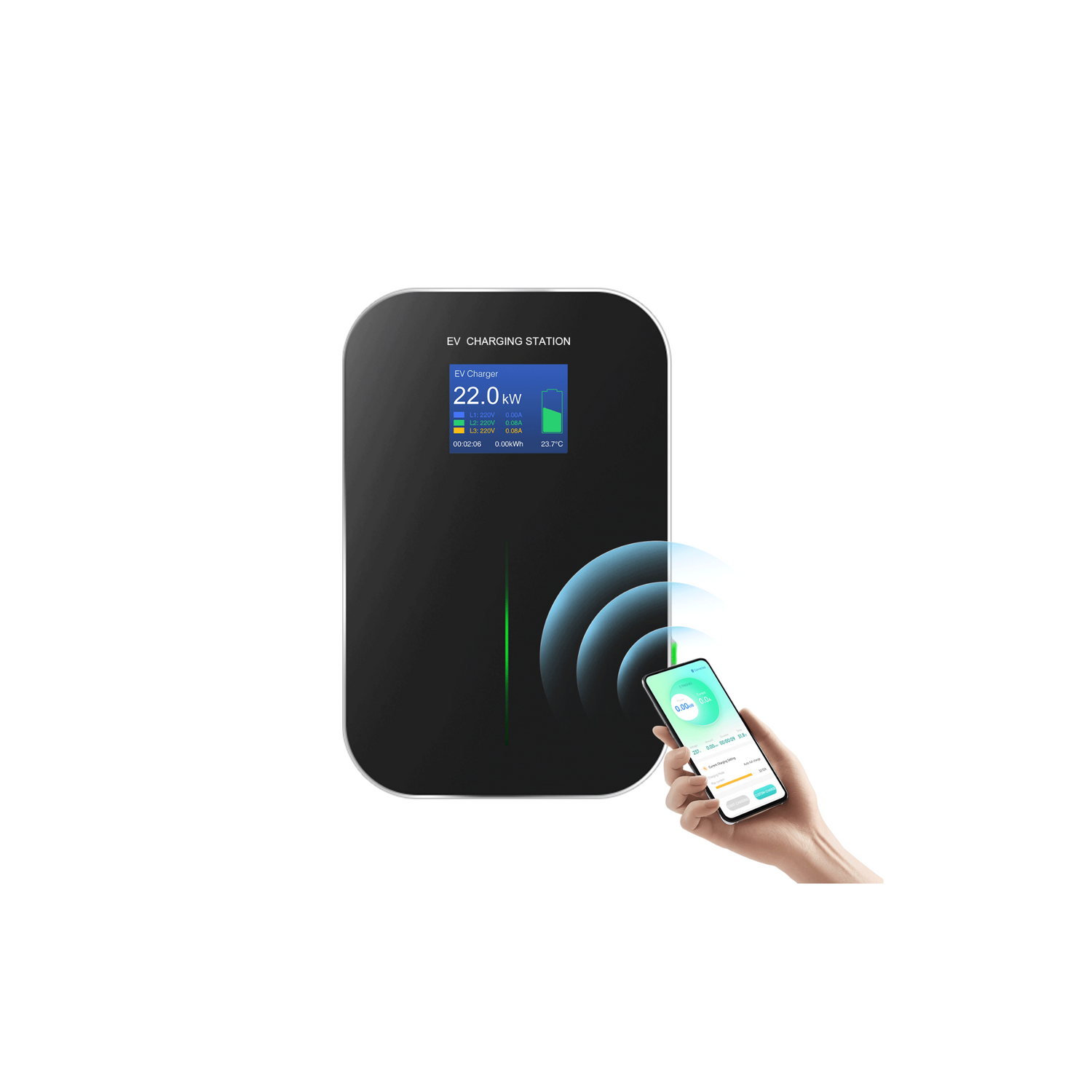

The Besen Charging Station with App gives you the option to manually adjust the load capacity via the app, to read loading sessions and to schedule loading sessions with the "delayed loading" function. Furthermore, thanks to the app, your Besen charging station is protected and cannot be used by others who do not have access to the application.
Check your meter cupboard in Belgium
To connect the Besen Type 2 charging station, must there is a neutral thread in your meter cupboard. Unfortunately, this is not always the case in Belgian households. For more information and help about this, you can always contact our customer service.
Below you can see an 'unboxing video':
Specifications
Specifications
-
Socket
-
Load Balancing
-
Smart Charging
-
RFID
-
Wifi
-
Bluetooth
-
4G
-
Eco-Smart
Downloads
Downloads
Manual
Want to know more about the Besen Type 2 Charging Station - Charging Station with Socket, or need help using this charger? Then check out the manual here.
Secure online payment
Payment options
Your payment information is processed securely. We do not store or have access to your credit card information.
About Besen
Basic variant
The basic variant, depending on which kW you choose, always charges at the maximum charging power your car's onboard charger can handle. There is an onboard charger in every electric car. This system determines how many kW your car battery can receive without overcharging. So if you have a Charging station that can charge 22 kW, but your car has an onboard charger that can receive a maximum of 11 kW, the Charging station never charge more than 11 kW. Because this Charging station always bases the charging power on what your car can handle, it is important that you consider the power your power connection provides yourself. This is because if you choose too much power to charge, your connection may be overloaded and the fuses will blow. With this choice, always take into account whether there is enough power in the meter box and choose a Charging station with kW that does not exceed your power capacity.
If you need help with this, please contact our customer service team. We fully understand that it can be a tricky subject and are happy to help!
The basic variant is CE as well as TUV, FCC, CSA and RoHS certified.
App version (Bluetooth)
Want a secure Charging station with more features than the RFID variant? Then the app variant is your favorite choice. With the EVSEMaster app, you can easily read back charging sessions on your mobile, tablet or desktop, schedule charging sessions thanks to "delayed charging" and change the charging power in amps. The lowest charging capacity is 6 amps (1.4 kW) and the highest is 16 (11 kW) or 32 amps (7.4 kW on 1 phase or 22 kW on 3 phase). A Besen type 2 Charging station with app has the most features of all the variants. With the app, charging is secured, as is RFID, but it is also possible to read back charging sessions and export them. Furthermore, the app allows you to set what times you want to charge and change the charging power in amps conveniently and quickly. Multiple people can be logged in and use the app, just not at the same time.
The app variant is available with 1-phase 7.4 kW, 3-phase 11 kW and 3-phase 22 kW charging capacity. Furthermore, the app variant is also CE certified.
Frequently Asked Questions
What are the most important considerations when purchasing a home charging station?
What are the most important considerations when purchasing a home charging station?
When purchasing a home charging station, it is essential to consider factors such as the charging capacity of the station, the available connection capacity in your home and the location of the charging station. Make sure your charging station meets the specifications of your electric vehicle and that the installation location is suitable.
What subsidies or financial assistance are available for purchasing a charging station?
What subsidies or financial assistance are available for purchasing a charging station?
There are several subsidies and schemes available in the Netherlands to support the purchase of charging stations. These include the Electric Driving in Business Market Subsidy Scheme (SEZ), Sustainable Energy Investment Subsidy (ISDE), and tax benefits such as the MIA (Environmental Investment Allowance) and VAMIL (Arbitrary Depreciation of Environmental Investments). Consult the Rijksdienst voor Ondernemend Nederland (RVO) for up-to-date information.
How can I install a charging station and what are the installation costs?
How can I install a charging station and what are the installation costs?
Installing a charging station usually requires a licensed installer. The installation costs vary depending on factors such as the distance to the electricity grid, the excavation work required and any adjustments to the electrical installation at home. Average costs are between €500 and €1,500, but this can vary.
Are there different types of charging stations available and which one is most suitable for my needs?
Are there different types of charging stations available and which one is most suitable for my needs?
Yes, there are several types of charging stations available, including regular home chargers, fast chargers and public charging stations. The choice depends on your specific needs. For daily home charging, a normal home charger up to a maximum of 22kW is usually sufficient. Fast chargers are convenient for on the road, while public charging stations are available at public locations.
What are the maintenance requirements for a charging station and how can I troubleshoot technical issues?
What are the maintenance requirements for a charging station and how can I troubleshoot technical issues?
Charging poles generally require little maintenance. Regular visual inspections and keeping the connection clean can help. For technical problems, contact the manufacturer or a licensed installer for repairs. Many charging stations also have built-in monitoring systems to report any malfunctions.
