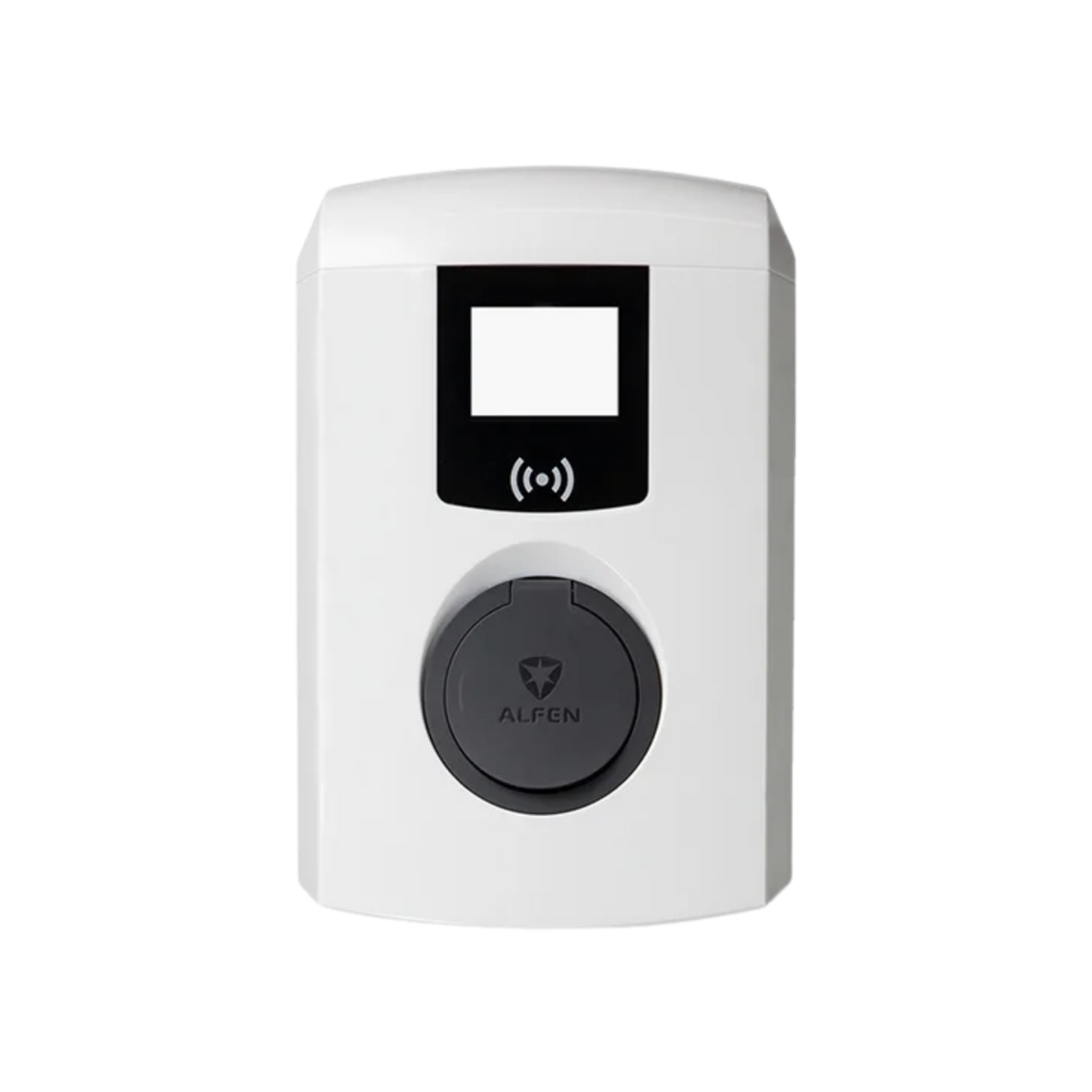

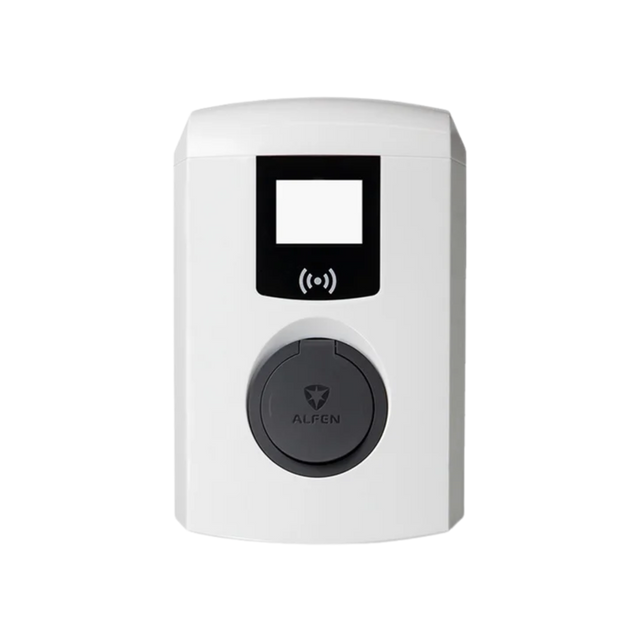

Alfen Eve Single Pro-line - Type 2 Charging Station with Socket - Charging capacity up to 22 kW
Load capacity up to 22 kW- Can load both type 1 and type 2 cars thanks to socket
- Maximum efficiency with Dynamic Load Balancing and Smart Charging
- Durable and water -resistant thanks to IP54 and IK10 Protection
- Automatic charging costs declare via back office provider and integrated RFID reader
Expected Delivery Date 2-3 working days
Self collection possible
Self collection possible
You can pick up your order on working days (in time slots) at our warehouse in Ridderkerk. Your order can be picked up between 09:00 - 11:00 or between 16:00 - 20:00. If you report to Schillingstraat 7, 2988 CT in Ridderkerk, a warehouse employee will hand over your package.
Delivery
Delivery
If you live in the Netherlands and order before 23:00 on a weekday, you will receive the product the next day. Orders after 11 p.m. or on weekends will be shipped on the next business day. For residents of Belgium & Germany, delivery takes 1 to 2 business days. For both the Netherlands, Belgium & Germany, shipping costs are free for orders over €40.
Returns
Returns
You can return your product within 30 days of receipt if you change your mind. Please make sure the product is complete and in its original packaging. Damaged or used items will not be accepted. Go to our returns page to request a return or exchange.
Alfen Eve Single Pro-line - Type 2 Charging Station with Socket - C...
Plus points
- All types of electric cars load via the handy socket
- Integrated RFID reader to load with charging passes
Optional Dynamic Load Balancing and Smart Charging Network that charges the car with maximum efficiency
- Easy to settle costs via BackOffice Provider
- A+ brand from Dutch soil
- Strong and water -resistant charging station with IP54 and IK10 certification
Cons
BackOffice Provider has subscription costs of 5 euros per month
Description
Description
Fast loading up to 22 kW
The Alfen Eve Single Pro-Line can be connected to both 1-phase and 3-phase connections. Depending on your Ampère, loading speeds from 3.7 kW to 22 kW are possible. 22 KW is currently the fastest possible loading speed, separately from special fast charging stations. To use fast loading on 22 kW, a 3-phase connection with 32 Ampere is needed.
Charging all types of electric cars with socket variant
This variant of the Alfen Single Pro-Line does not have its own fixed charging cable, but a socket. Both type 1 and type 2 loading cables fit in the socket. This allows you to charge different types of electric cars with the socket variant!
3.5 ”LED display
The Single Pro-Line has an LCD color screen on which the loading costs, loading capacity and loading time are displayed. It is also possible to show the logo of your company on the charging station for a professional look.
Durable charging station with IP54 and IK10 Protection
This Alfen charging station is a compact and made of polycarbonate, a lightweight and durable material. The IP54 and IK10 protection classes that the charging station has received are proof of sustainability. IP54 means that the charging station is water -resistant enough to defy rainy weather conditions. I10 means that the charging station is resistant to shocks and bumps up to 20 Joules. In other words: your Alfen charging station will last for years!
Dynamic Load Balancing
The Alfen Eve Single Pro-Line offers Dynamic Load Balancing to ensure that the power consumption for loading remains within the available capacity of your power connection. This prevents overloading your connection, so that the stops will never go through.
Smart Charging Network
Smart Charging is an innovative function that makes dynamic power distribution possible over multiple charging stations. For example, cars at different charging stations are always charged as efficiently as possible.
Integrated RFID reader
Thanks to the integrated RFID reader you can load secure with charging passes. Thanks to the RFID meter, you can also determine who can use the charging stations and possibly pass on additional charging costs if you make the charging station public.
Easy setting charging costs through Maxem
Via Maxem, the back office provider of Alfen Charging Stations, you can view your charging data and change charging station settings. Thanks to the integrated mid-meter, Maxem also receives the costs for energy consumption. You can then easily settle this automatically via Maxem with your employer or own company.
Change charging settings via the Myeve application
The Myeve app makes installing and setting your Alfen charging station accessible via smartphone, tablet or desktop. This way you can set the maximum ampere, determine Dynamic Load Balancing and set up a Smart Charging Network between different charging stations.
SHE. Ready
The Alfen Eve Single Pro-Line with cable is completely compatible with all Renault Z.E. Cars, such as the Renault Zoë, and therefore has the Z.E. Ready warranty.
Specifications
Specifications
-
LCD screen/display
-
Socket
-
Load Balancing
-
Smart Charging
-
Wifi
-
Bluetooth
-
4G
Downloads
Downloads
Manual
Want to know more about the Alfen Eve Single Pro-line - Type 2 Charging Station with Socket - Charging capacity up to 22 kW, or need help using this charger? Then check out the manual here.
Secure online payment
Payment options
Your payment information is processed securely. We do not store or have access to your credit card information.
About Alfen
How it works Charging station
Dynamic Load Balancing with the Single Pro-line
Dynamic Load Balancing ensures that your electric car is always optimally charged. To do that, you need a smart meter. This smart meter analyzes the current power consumption of your connection and calculates the residual capacity. It sends the residual current to the Alfen Single Pro-line to charge your electric car. This way, power consumption always remains within the available capacity, preventing overloading on your power connection. The smart meter must be a minimum version of (E)SMR 4.0.7. To connect this smart meter, it is essential that a P1 port is available in your meter box. Once this is connected, all that is needed is to connect a data cable (DSMR 4.2 and above) for a physical connection between the Charging station and the smart meter. But the installers at our partner Charging Union will take care of that!
Smart Charging Network from Alfen charging stations
Smart Charging is a unique feature that Alfen developed in-house, which allows multiple charging stations to be connected together to create a dedicated charging plaza network. With Smart Charging, the current power capacity is then dynamically distributed to the number of cars currently charging at different charging stations. Dynamic distribution is based on the battery status of the connected vehicles. For example, more charging power is sent to cars with empty or less full batteries, making the charging process many times more efficient. This may look like load balancing, but it is not. Load balancing distributes charging power across a single charging station, where Smart Charging distributes it across a charging plaza consisting of multiple charging stations.
Smart Charging is an optional feature of the Alfen Eve Single Pro-line in the form of a license. Does this seem interesting to you? If so, please contact us about this.
Secure charging and charge cost settlement with the integrated RFID reader
Our Alfen charging stations are equipped with an integrated RFID reader, making it possible to charge via charging passes. Thanks to charging passes, you get the flexibility to determine which vehicles can charge for free and can access the Charging station limit to specific users. Whereas with the Maxem back office you determine the charge cost per kWh, it is through the charge card that the charge cost is billed to the right party. This is because the charge card is linked to your electric car. When you charge, the back office of the Charging station collects all charging data, such as power consumption, charging costs and charging time. The charging costs are put into an invoice and sent to the company where you bought the charge card. This company then automatically charges the invoice to you or your employer. So it's that easy to declare your charging costs automatically!
View data with the myEve application
Alfen has released an app called myEve. It allows users to view data from their charging station anytime, anywhere. This app is available on smartphones, tablets and even desktops. Through the app you can easily change settings and easily see what the charging consumption and charging costs are. To use the app, the Alfen Eve Single Pro-line does need to be connected to the Internet. Fortunately, this can be done either wirelessly or via an Ethernet cable.
